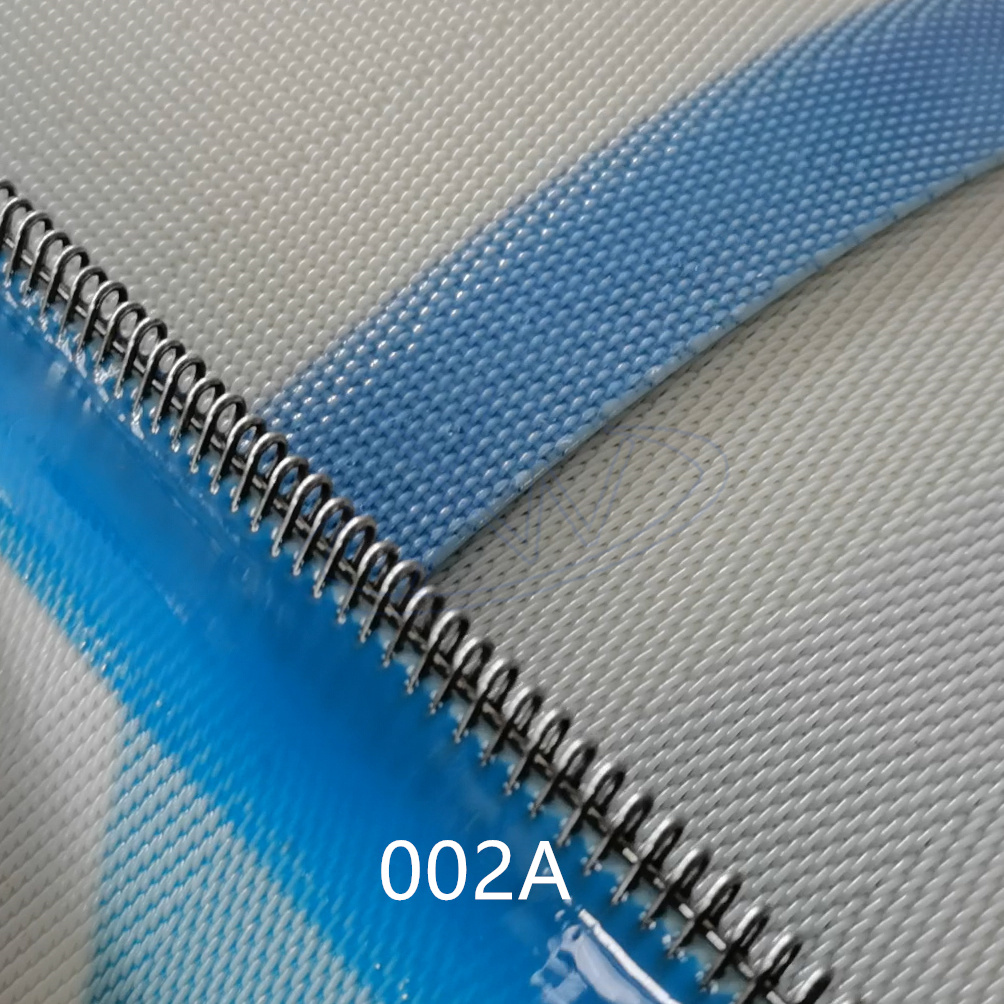

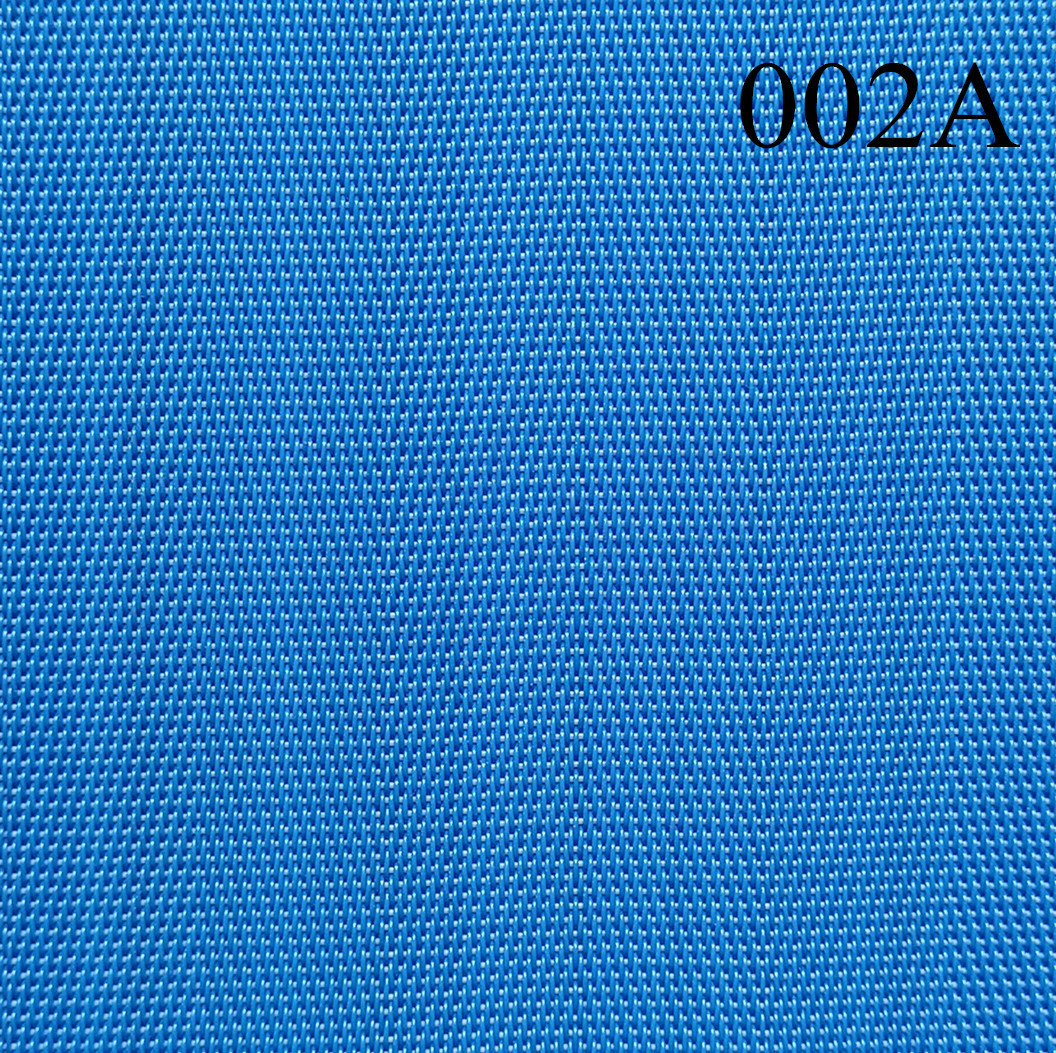

Belt filter press filter cloth belt 002A

Belt material: PET polyester
Applicable models: Belt press filter
Main features: Good mechanical strength, dimensional stability
Applicable industries: Urban sewage, sludge dewatering and pressing section

E-Mail:

wyl@citius-filter.com

WhatsApp:

86-13950107241

Product inquiry
Related Products

Share to

Model 002A
Material Warp Material PET
Weft Material PET
Air Permeability at 127Pa L/m².S 1700～1900
CFM 335～375
Air Permeability at 200Pa L/m².S 2300～2500
CFM 450～490
Water Permeability at 1200Pa L/m².s 220～240
Thickness mm 2.10
Warp Breaking Strength N/cm 2350
Warp Elongation at Break % 28.0
Elongation at Constant Load % 500kg/m 0.40
Weight g/m² 1540
Retention Precision μm 350～400
Application Scope Applicable Models: Belt Press Filter
Main Features: Good mechanical strength,
Dimensional stability
Applicable Industries: Municipal wastewater,
Sludge dewatering pressing section

Product details page: 002A high-strength PET belt filter press filter cloth
🔹 Product Model
002A

🔹 Material Structure
Warp material: PET (polyester fiber, high strength, corrosion resistant)
Weft material: PET (polyester fiber, wear-resistant, tensile)
🔹 Air Permeability
Test Conditions Air Permeability (L/m²·s) CFM (cubic feet/minute)
127Pa 1700～1900 335～375
200Pa 2300～2500 450～490
🔹 Water Permeability
1200Pa water permeability: 220～240 L/m²·s
🔹 Physical Properties
Thickness: 2.10mm
Weight: 1540 g/m²
Retention precision: 350～400μm (efficient interception of sludge particles)

🔹 Mechanical Strength
Warp breaking strength: 2350 N/cm (ultra-high tensile strength)
Warp elongation at break: 28.0%
500kg/m constant load elongation: 0.40% (dimensional stability, not easy to deform)

🔹 Application Scope
✅ Applicable models: Belt press filter
✅ Applicable industries:
Municipal wastewater treatment
Industrial sludge dewatering (pressing section)

🔹 Product Features
✔ High strength & wear resistance: PET material ensures long-term use without damage
✔ Excellent air and water permeability: Fast drainage, improves dewatering efficiency
✔ Dimensional stability: Low elongation, avoids filter cloth sagging and deformation
✔ Precise retention: 350～400μm filtration precision, effectively intercepts sludge particles

📌 Application scenarios: Municipal wastewater treatment plants, dyeing, papermaking, chemical and other industries sludge dewatering treatment

💡 Warm reminder: Different specifications of filter cloth can be customized according to customer needs, welcome to consult!

📞 Contact us: Get more technical parameters or sample trial
